Provision a host

Screenshots below are real captures from a running centre; the step-by-step wording around them is still being checked against the console's exact button labels.

Once the agent is installed and the host appears in the centre's inventory, it has no desired state yet — Ballast never invents intent, so a freshly-registered host sits idle until you give it something to enforce.

1. Confirm inventory​

Open the host's detail page in the console and check that its reported physical adapters match what you expect. This is the agent's HostInventory report; if an adapter is missing, confirm the agent process has permission to enumerate it before going further.

2. Declare a virtual switch and management vNIC​

Author a VirtualSwitchSpec for a SET-teamed (Switch Embedded Teaming) external vSwitch over the physical adapters you want to bond, and a ManagementVNICSpec for the vNIC the host itself will use — VLAN, IP configuration and MTU all live here. SET is switch-independent only — there is no dependent-mode teaming under a vSwitch, and legacy LBFO teams are not modelled.

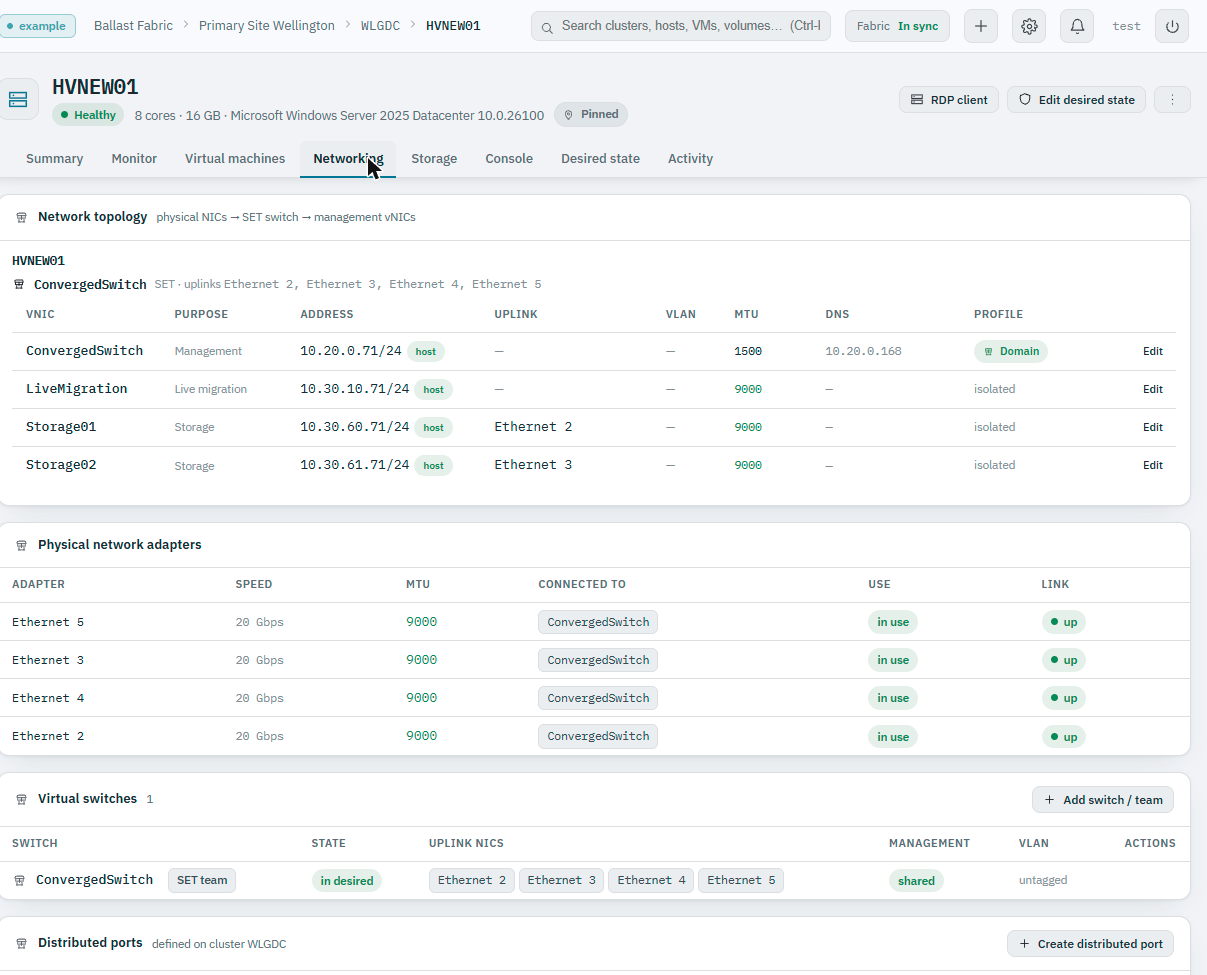

Ballast console networking tab showing a SET-teamed vSwitch built over four physical adapters, with management, live-migration and storage vNICs each carrying their own address and MTU

The console's networking tab lays this out exactly as it's modelled: physical NICs → SET switch → management vNICs, each vNIC showing its purpose (management, live migration, storage), address, uplink, VLAN and MTU.

3. Apply and watch it reconcile​

Once desired state is saved, the agent's reconcile loop picks it up on its next pull, creates the switch and vNIC via the underlying PowerShell modules, and reports Status.ObservedGeneration catching up to the desired Generation. Reapplying the same spec is always a no-op — reconciliation is idempotent by design.

Ballast console host detail showing an mTLS-secured agent settled at generation 4 of 4, with sixteen reconcile steps already matching desired state

A settled host shows every reconcile step as AlreadyConfigured, its generation counter caught up, and its agent's mTLS certificate status — not a generic "healthy" flag standing in for all of that.

Interactive console​

Every host also has an interactive console reachable from the centre — no RDP client to install, no route needed from your machine to the host itself:

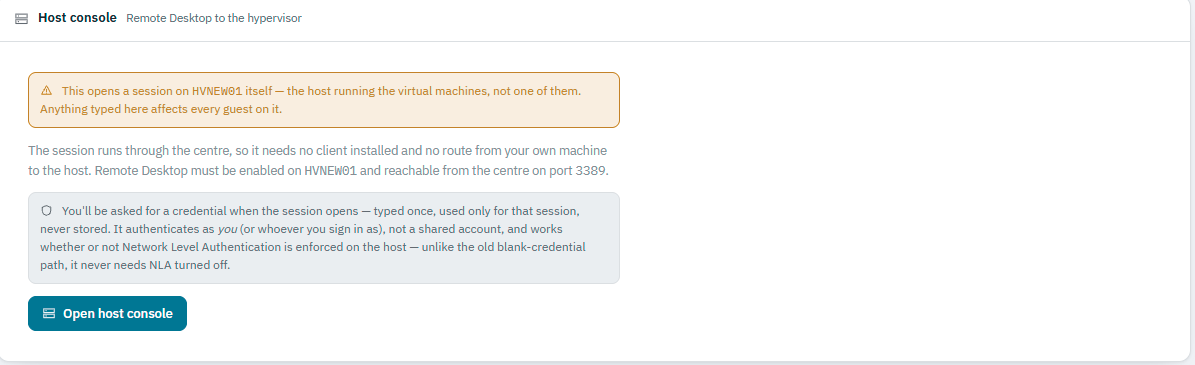

Ballast console host detail Console tab: Remote Desktop to the hypervisor, with a warning that this opens a session on the host itself, and a note that the session asks for a credential typed once and never stored, attributed to whoever signs in

This is deliberately called out as a host console, not a VM console: a session here reaches the hypervisor itself, so anything typed affects every guest running on it. Opening it asks for a credential each time — typed once, used only for that session, never stored — so the session is attributed to whoever actually signed in, not a shared account, and it works whether or not Network Level Authentication is enforced on the host. The separate RDP client action on the host's Summary tab remains available too, downloading an .rdp file for your own Remote Desktop client instead.

Each VM has its own, separate interactive console, reachable the same way from its own detail page. The VM console is unchanged from the above: it still signs in with the stored console credential from Settings → Console credential, deliberately — a VM console only needs host-admin rights to open the channel, it never logs into the guest, so a shared credential there doesn't reduce operator effort or attribution the way it would on a host.

Next​

Continue to Join a cluster if this host is one of several forming a failover cluster, or stop here for a standalone host.
